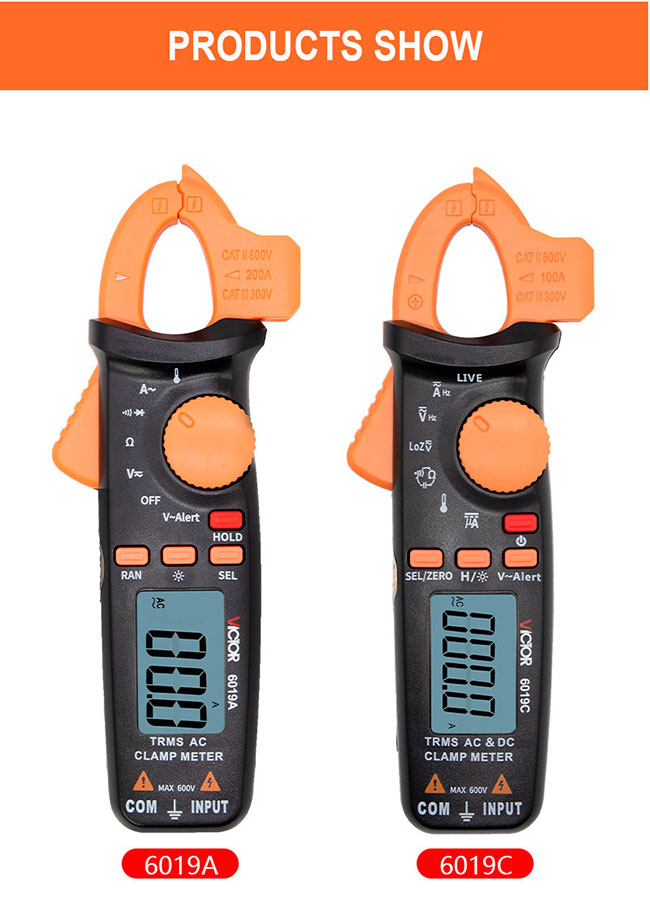

MINI True RMS AC Digital Clamp Multimeter 6019A With Temperature Test

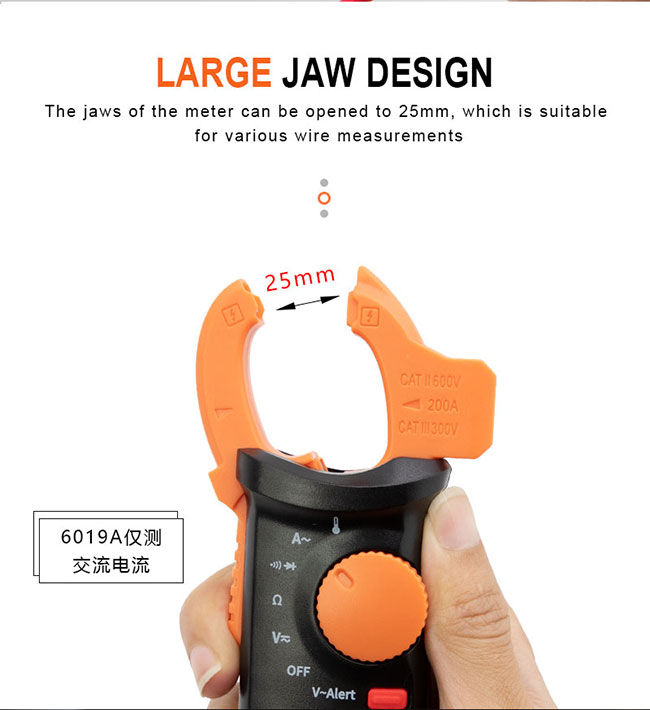

6019A MINI True RMS AC Digital Clamp Multimeter 6019A Auto Range Multimeter AC Clamp Meter LCD display with 50mm clamp jaw
Introduction
The meter meets IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033, Safety Requirements for Electronic Measuring
Instruments, of the secondary pollution, over-voltage standard is CATIII 300V, CATII 600V.
Please follow the safe operation guidance and ensure to use the meter in safe.
1.1 Preparations
1.1.1 When use the meter, users must comply with the standard safety rules:
- General protection against electric shock
- Prevent misuse of the meter
1.1.2 After received the meter, check if it has been damaged during the delivery.
1.1.3 After been kept and delivered in shoddy conditions, check and confirm if the meter is damaged or not.
1.1.4 The clamp meter must be in good condition. Before use, check the clamp meter see if any damage to the insulation, if the metal wire
of the cable is bare.
1.1.5 Operating temperature range: 0℃ to 40℃
Technical Data
| Basic function | Range | Basic accuracy |
| 6019A | 6019C |
| ACA | 2A/20A/200A | ±(2.5%+5counts) | |
| 6A/60A/100A | | ±(2.5%+5counts) |
| DCA | 6A | | ±(3%+5counts) |
| 60A/100A | | ±(2.5%+5counts) |
| 0-200μA | | ±(0.8%+5counts) |
| DCV | 200mV/2V/20V/200V/600V | ±(1.0%+3counts) | |
| 6V/60V/600V | | ±(1.0%+3counts) |
| ACV | 200mV/2V/20V/200V/600V | ±(1.0%+3counts) | |
| 6V/60V/600V | | ±(1.0%+3counts) |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ | ±(1.0%+3counts) | |
| 20MΩ | ±(1.2%+20counts) | |
| 600Ω/6KΩ/60KΩ/600KΩ/6MΩ | | ±(1.0%+3counts) |
| 60MΩ | | ±(1.2%+20counts) |
| Capacitance | 600μF/6000μF | | ±(4%+3counts) |
| Frequency | 60Hz/1000Hz | | ±(1.0%+5counts) |
| Temperature | -20~500℃
-4~932℉ | ±(2%+2counts) | ±(2%+2counts) |
| Special function | | | |
| Diode measurement | | √ | |
| Low impedance measurement | | | √ |

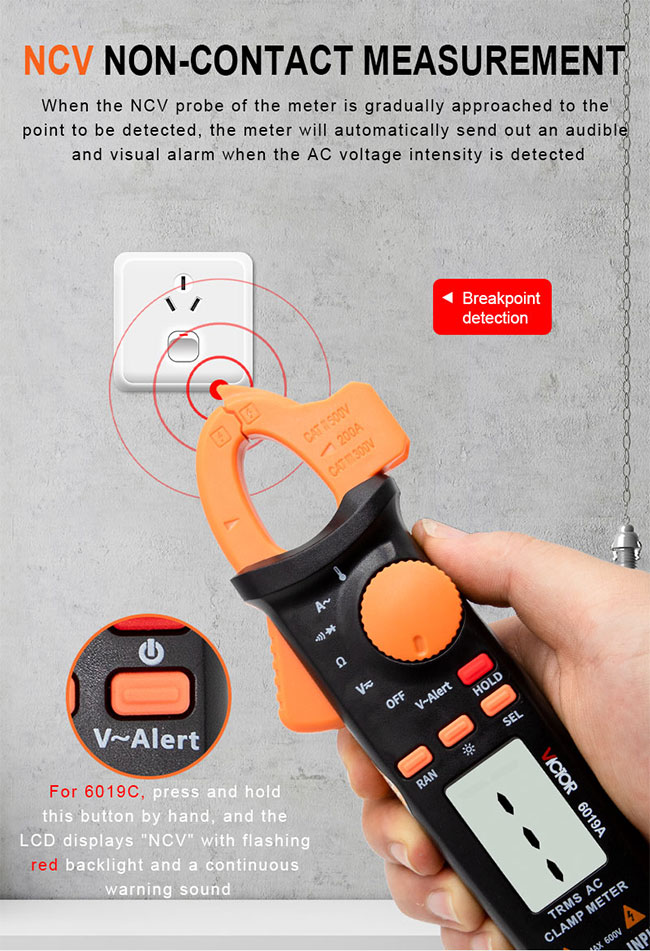

| NCV Test | | √ | √ |
| Live wire test | | | √ |
| continuity test alarm | | √ | √ |
| Low battery indication | | √ | √ |

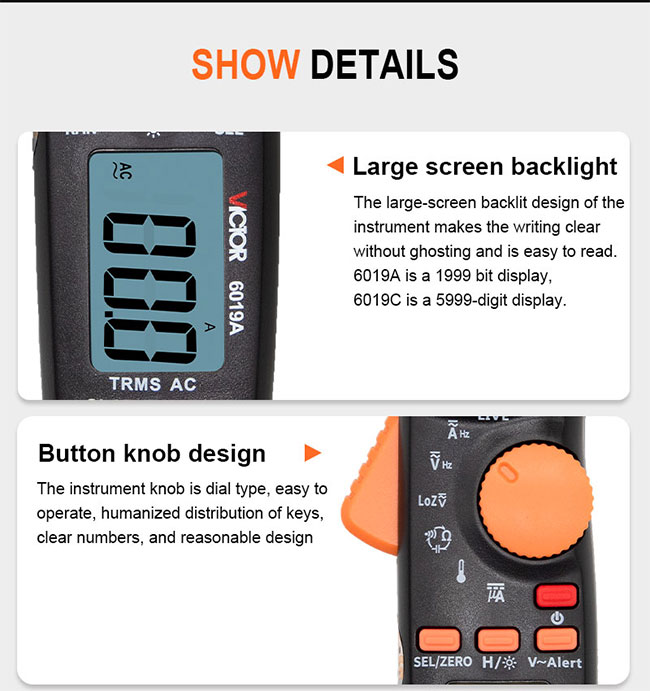

| Backlight display | | √ | √ |
| Function protection | | √ | √ |
| AUTO Power off | | √ | √ |
| Automatic power off time | | 15 mins, push SEL+ to cancel the mode | 20 mins, push SEL+ to cancel the mode |
| Input impedance | | 10MΩ | 10MΩ |
| Relative humidity | | ≤ 75% | ≤ 75% |
| Working height | | Max. 2000m | Max. 2000m |
| Over range indicatiion | | "OL" displays | "OL" displays |
| Sampling time | | About 3 times/s | About 3 times/s |
| Working temperature | | 0℃~40℃ | 0℃~40℃ |
| Storage temperature | | -10℃~50℃ | -10℃~50℃ |
| ACV Frequency response | | 45-1000Hz | 45-1000Hz |

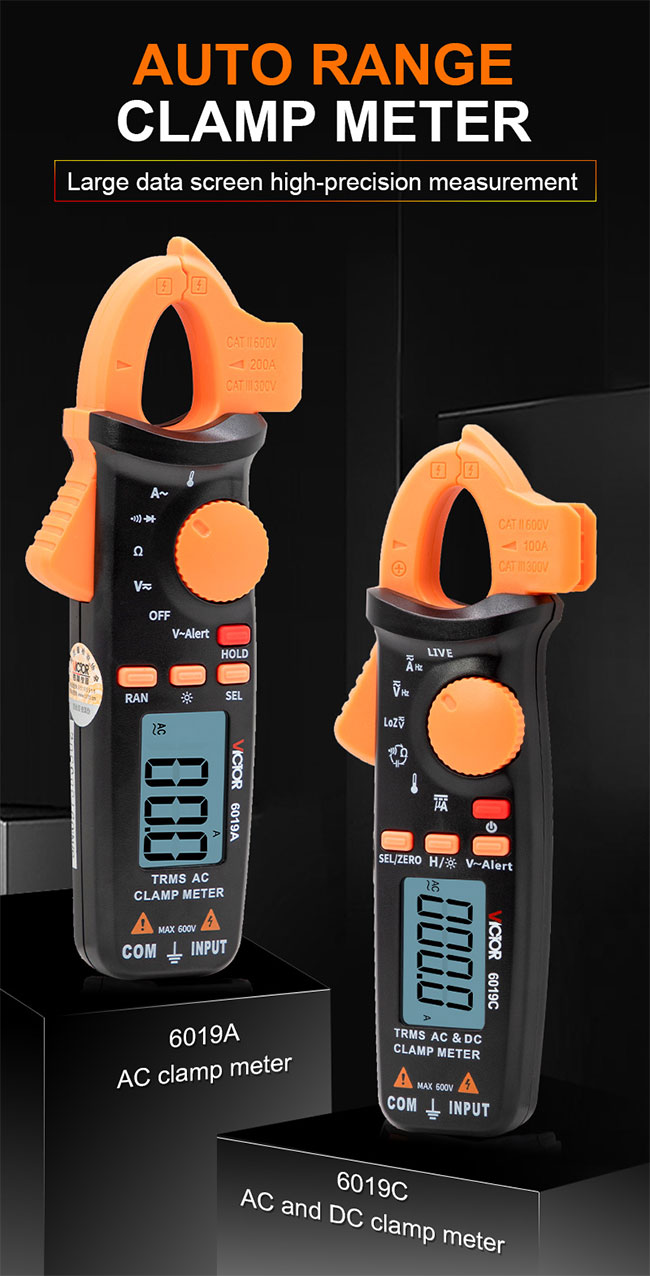

| Operate method | | Auto range | Auto range |
| Weight | | 137g | 137g |
| Max. display | | 2000 counts | 6000 counts |
| Polar indication | | Automatically indicate |

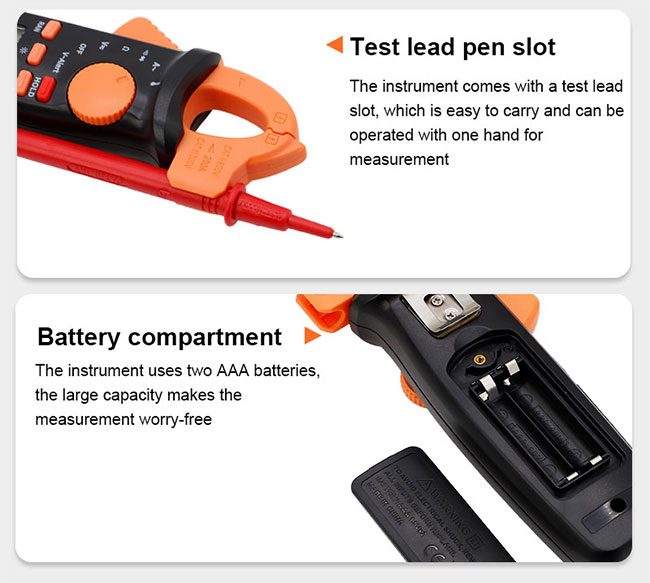

| Power supply | | 2*1.5V AAA Battery |
| Dimension | | L179*W67*H36mm |
