VICTOR 90A 90B high voltage approach electric alarm none contact voltage alarm function high voltage electric shock

Name: VICTOR 90A 90B high voltage approach electric alarm none contact voltage alarm function high voltage electric shock
Brand: VICTOR
Price: 500 USD

Buy cheap VICTOR 90A 90B high voltage approach electric alarm none contact voltage alarm function high voltage electric shock product

Brand Name : VICTOR

Model Number : 90A

Place of Origin : CHINA

MOQ : 10pcs

Price : 500 - 999 pieces US$21.59 1000 - 2999 pieces US$20.78 >= 3000 pieces US$19.15

Payment Terms : T/T

Supply Ability : 1000pcs

Delivery Time : 3 to 35 days

Packaging Details : 50pcs/carton; carton size is 58*37*24cm,5KG/CARTON

Contact Now

VICTOR 90A high voltage approach electric alarm none contact induction multiple function High voltage power alarm wrist type

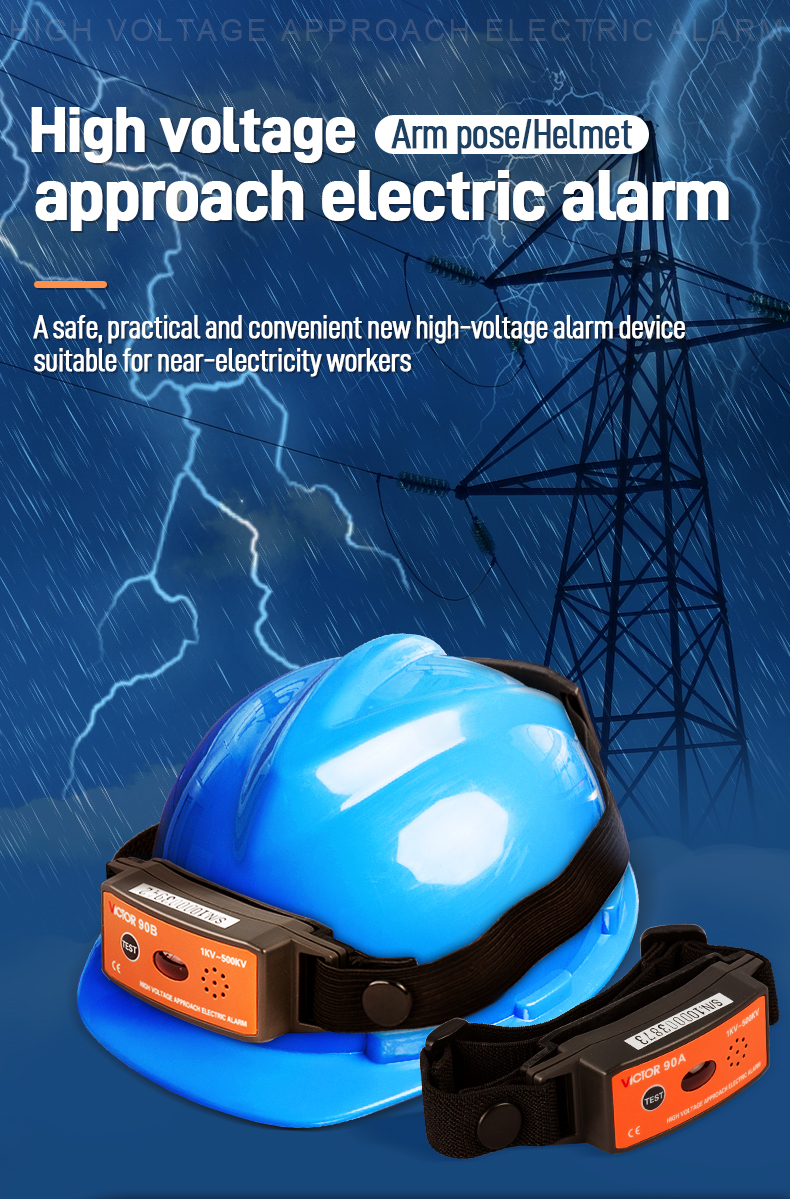

Arm Type High Voltage Approach Electric Alarm provide a safe, practical and convenient new type high voltage alarm device for close-electric operator. During live electric working, the safe distance between operator and live body should not be closer than the requirement of relevant working regulations. After the operator wearing this alarm, when close to the high voltage charged body for a certain distance, according to the corresponding safe distance of voltage level, the alarm will make out the sound and light alarm to remind the electrical workers to pay attention to safety and avoid high voltage electric shock accidents.

Product Name	Voltage Alarm Range	Application
Arm Type HV Approach Electric Alarm	1kV～500kV	High voltage alarm

Alarm Voltage And Distance

Voltage Level	Working Distance
6.6kV	0.6m
10kV	0.8m
35kV	1.4m
66kV	1.8m
110kV	2.2m
220KV	3.0m
330KV	3.6m
500KV	4.2m

Technology Parameter

Function	Approach Electric Alarm

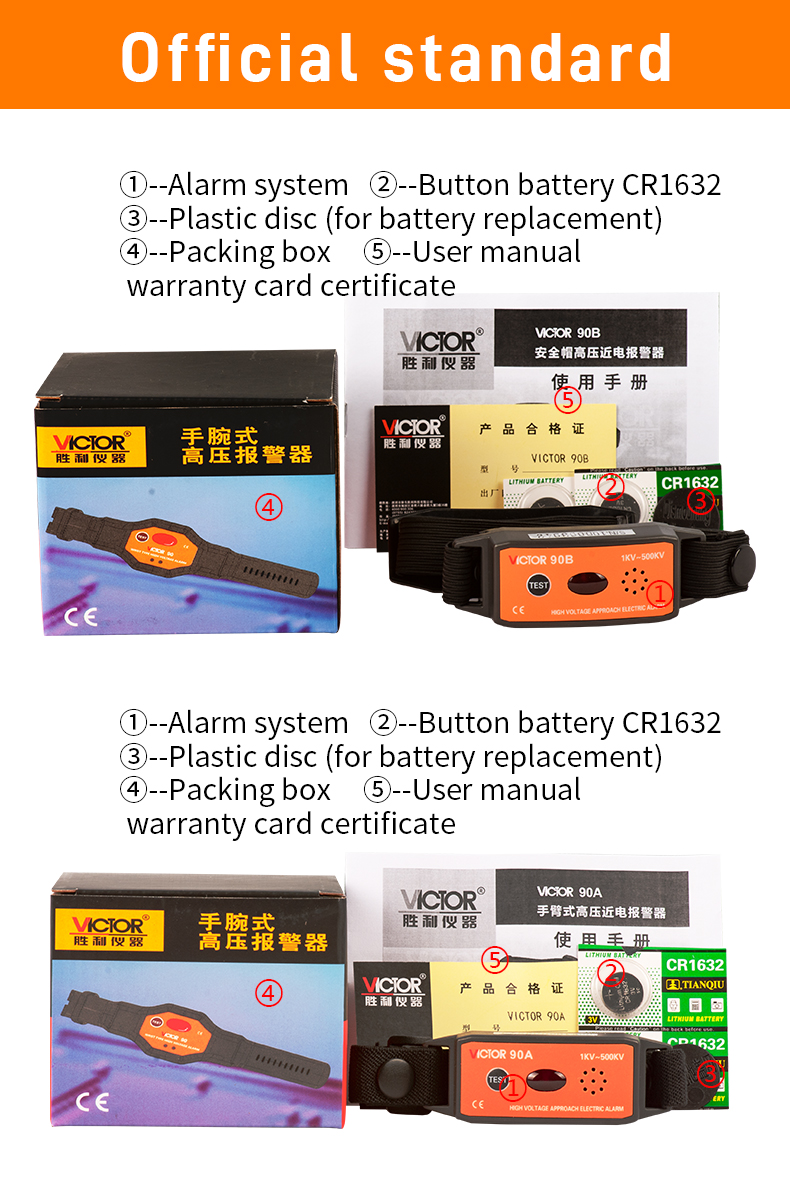

Power Supply	CR1632(140mAH)button cell 2PCS
Alarm Voltage Range	1kV～500kV(high voltage alarm)
Alarm Distance Error	±10cm(23℃±1℃,80%Rh,under base condition)
Working Frequency	50Hz/60Hz

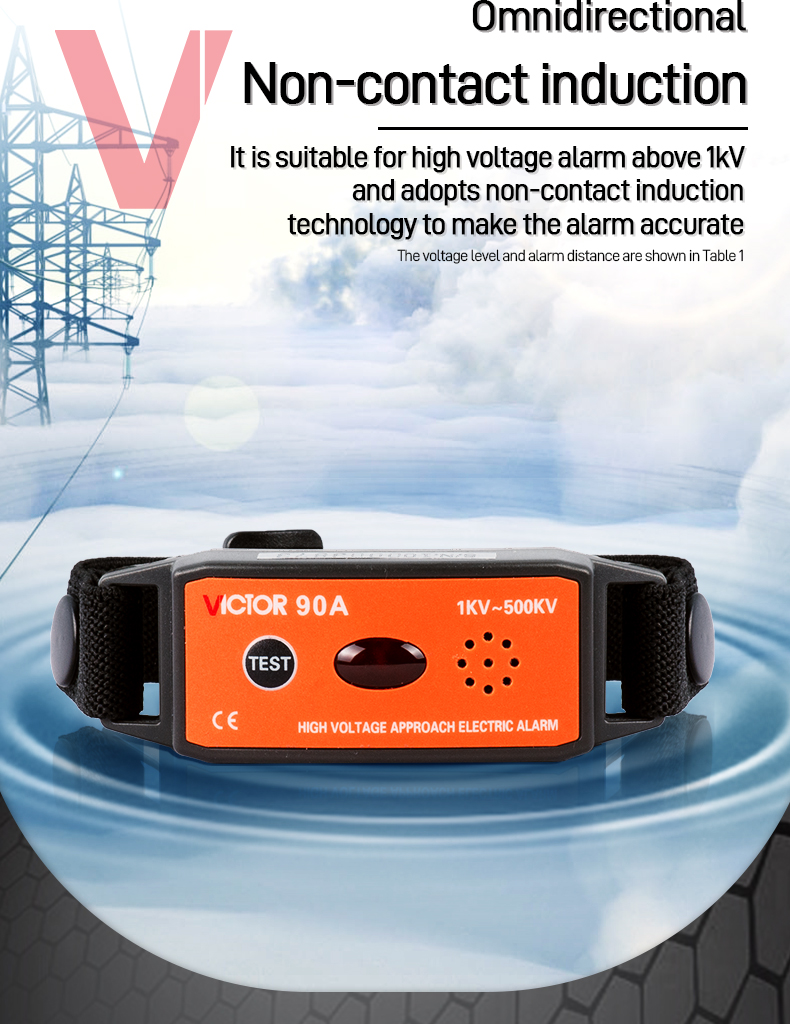

Electricity Testing Mode	Non-contact mode
Detection Mode	Automatic trigger
Battery Life	Continues working(sound and light alarm):about 24 hours
Battery Life	Standby time:about 12 months

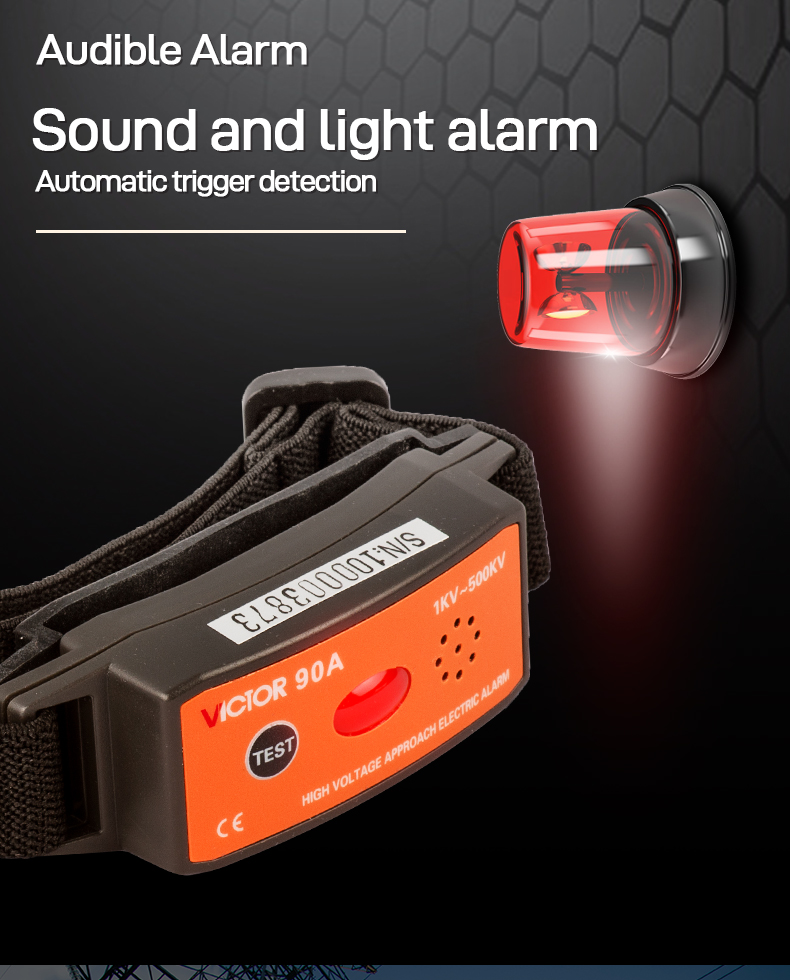

Alarm Mode	Indicator: LED light visiblity under 8000LX visible light
Alarm Mode	Buzzer:above 60dB(60CM apart)
Weight	351g(include battery)
Dimensions	88mmX32mmX30mm
Protection Level	IP54
Working Temperature	-10℃～40℃；below 80%rh
Store Temperature	-10℃～60℃；below 70%rh
